WHY KEENAN DIAPHRAGM PUMP?

Upgrade Air Pressure Valve ensure precise pressure regulation.Full copper ball valve allows long service time for paint corrosion.Large flow volume stablizer to regulate the pulse of paint flow.

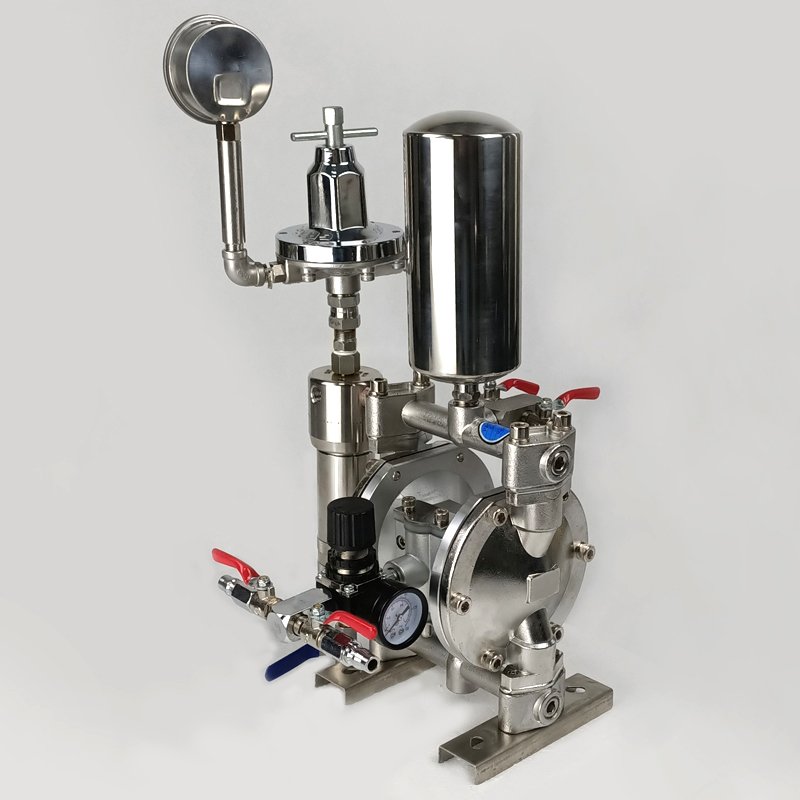

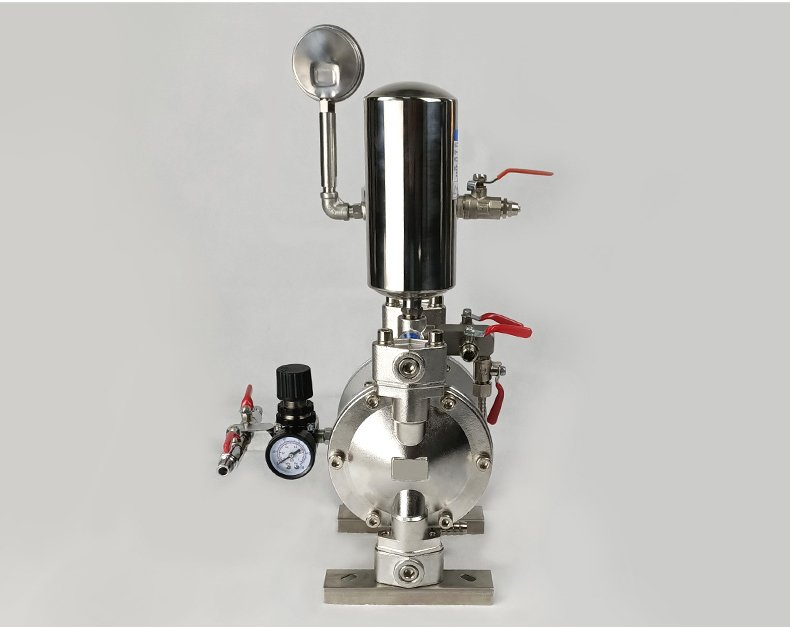

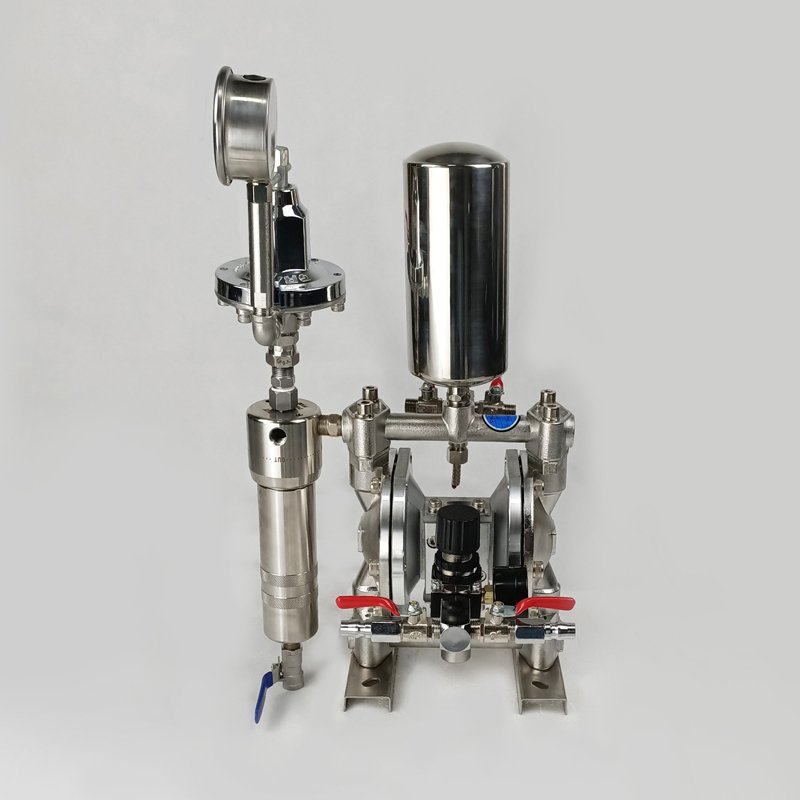

stainless steel diaphragm pump — SS diaphragm pump

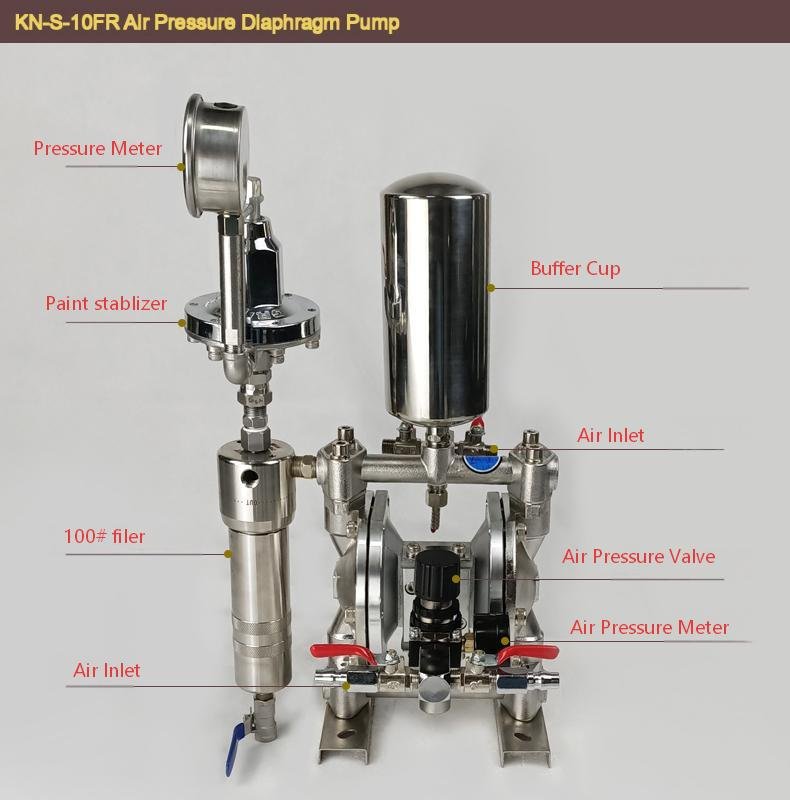

STRUCTURE DIAGRAM(Pneumatic Diaphragm Pump KN-S10FR)

stainless steel diaphragm pump structure — diaphragm pump structure

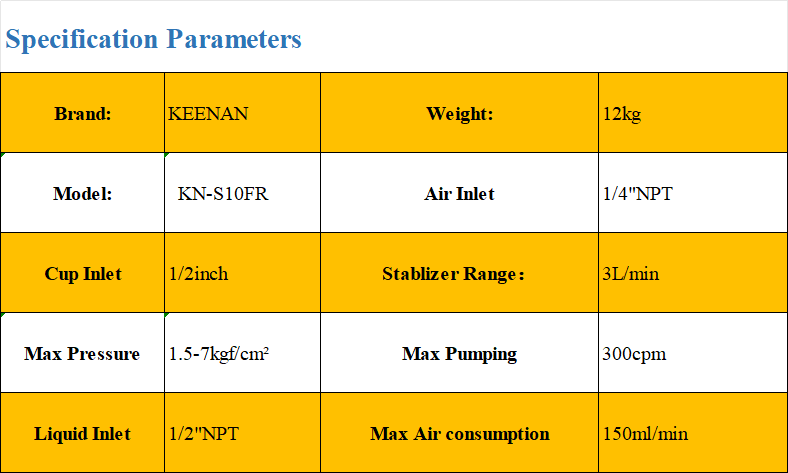

SS diaphragm pump specs — diaphragm pump specs

Details

Max Working Pressure	1.5-7kgf/cm
Max Pumping Volumn	300cpm
Liquid Inlet Dimension	1/2NPT
Max Air Consumption	150ml/min
