Why electrostatic spray？
Electrostatic spraying is accomplished by applying high voltage electrostatic charge on the coating particles to the coating parts with good grounding.
The advantage of electrostatic spraying is to improve the efficiency of coating transmission and reduce the waste of paint.

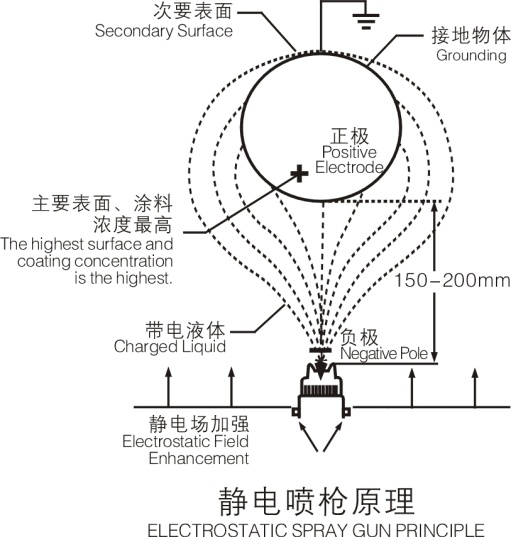

How does it generate electrostatic？
Most popular application

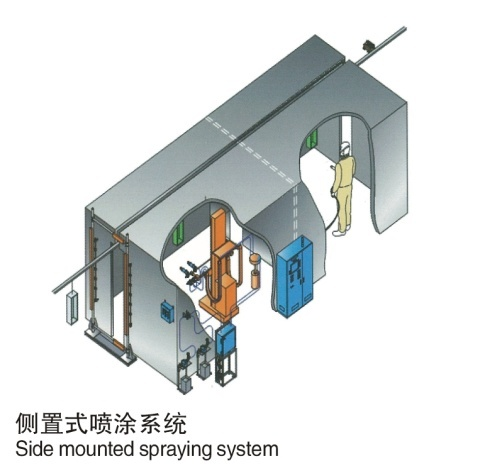

Mostly,you can see the application is on side mounted hanging line,whereby the reciprocater machine sit on the side and do reciprocation spray finishing/coating.See below module

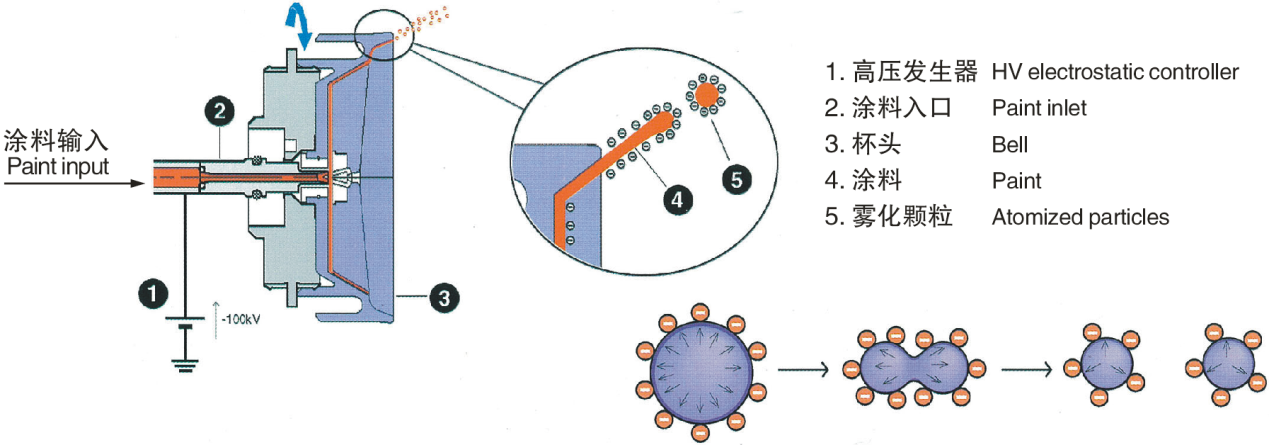

What’s the core technology？
It’s the “Atomization Technology Of Rotary Bell”

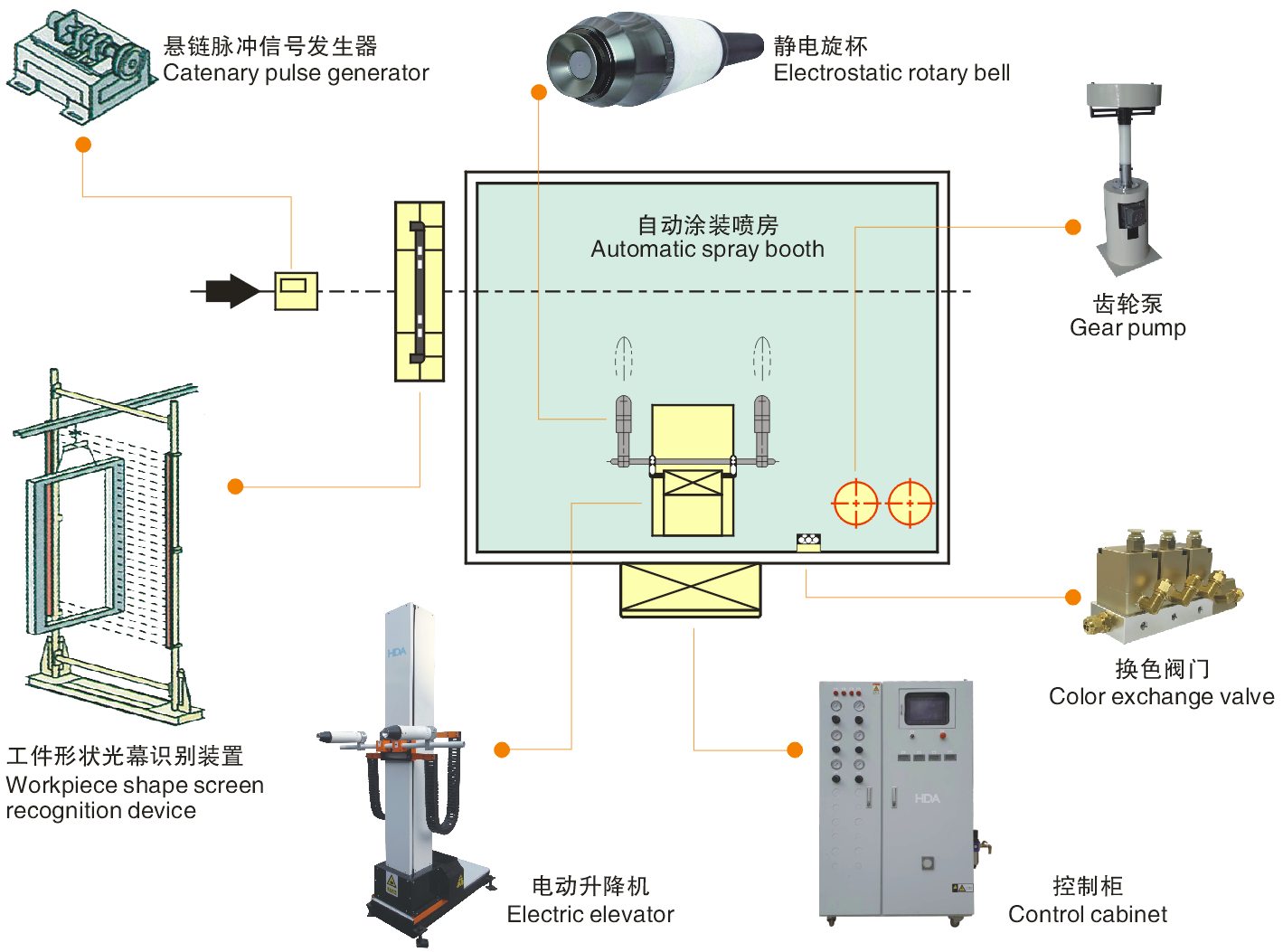

Configuration & Compostion (Hanging Line Reciprocating Spray)

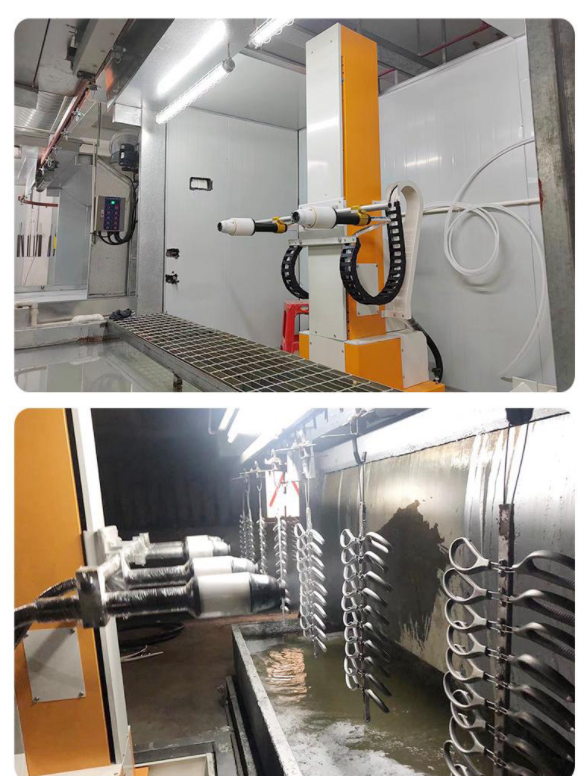

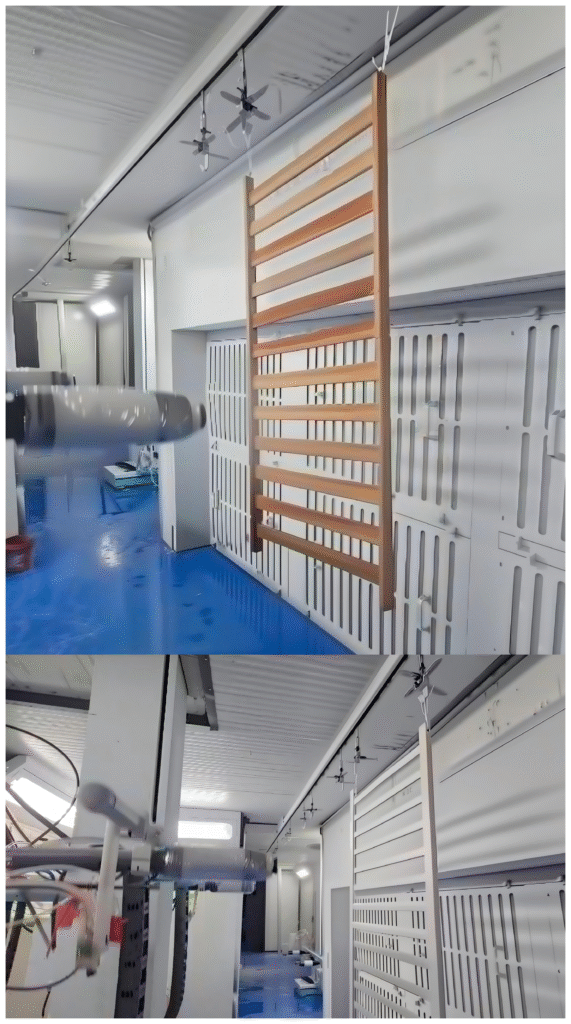

Cases In Application
Details
| RPM | 5000-55000 |
|---|---|
| Delivery Voltage | DC 20-80KV |
| Max volume | 500cc/min |
| Spray Pattern | 100-500mm |
