Auto spray series

Overview

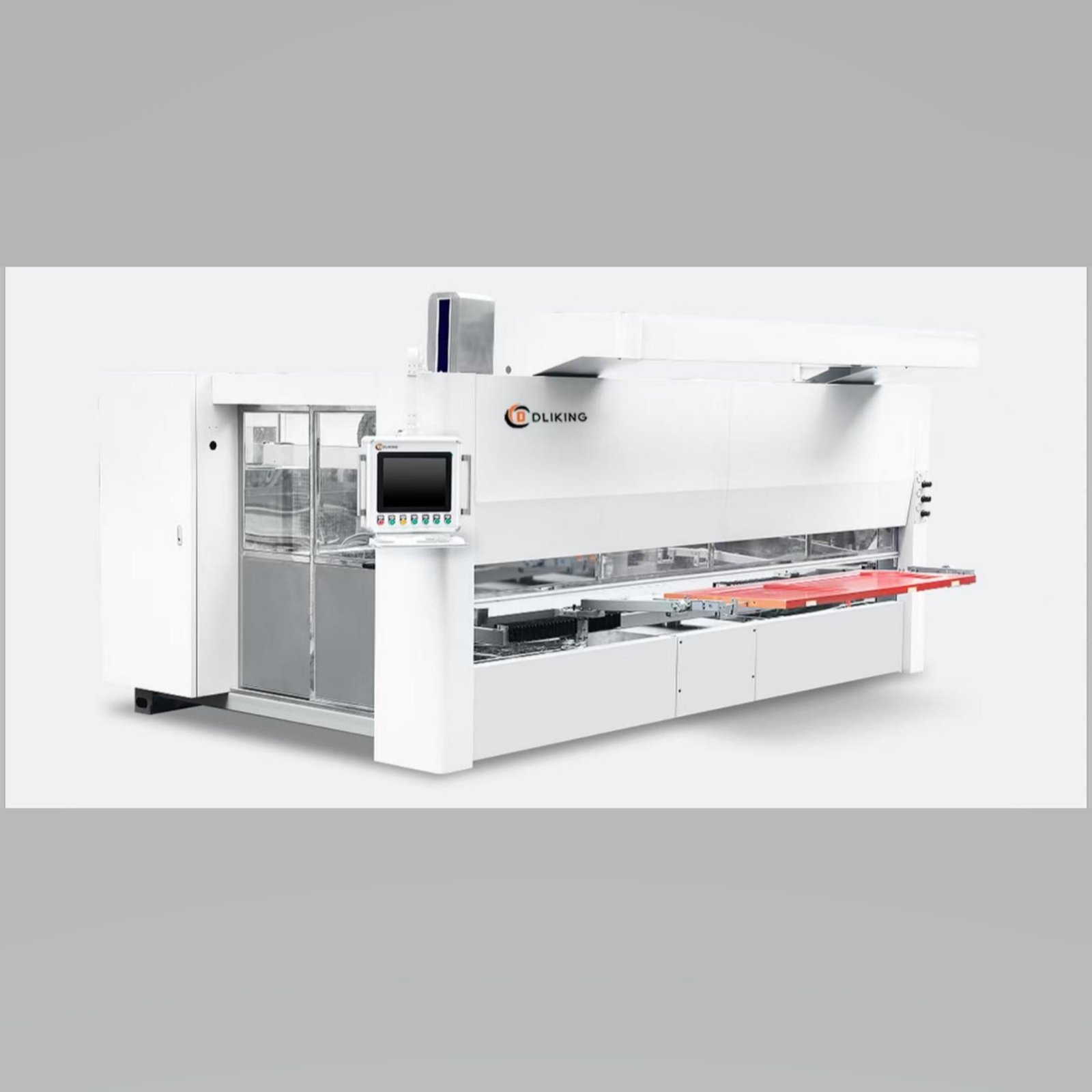

The system adopts 3 D vision, which can automatically identify the size and outline of the sprayed piece and realize highly automatic spraying.

1. The spray gun can realize: horizontal movement of X axis, Y axis, Z axis moving up and down, horizontal rotation of U axis, and R axis swinging up and down. The movement of each axis requires smooth and flexible movement, no jamming phenomenon, and small noise.
2. Optional dual station working platform, the platform can do 180 degrees of positive and negative smooth rotation, the end of rotation has buffer shock absorption function, without rebound and jitter phenomenon. The workpiece frame of the turntable is made of aluminum profile, which can adapt to the positioning of different plates.
3. The body frame is welded and processed with national standard steel, and the weld has no deficiency welding defects. The frame adopts the assembled structure (the assembly form should be able to meet the requirements of entering the installation site), and the overall structure of the assembly is well rigid. The surface of the body should be completely clean, and the surface paint is firm and beautiful.
4. The protective door can automatically move up and down, so that the spray paint space can achieve a sealed effect. Glass observation window on the side of the machine;
5. The spray gun holder is made of aluminum alloy gun holder, with 360 degrees horizontal and 90 degrees vertical are adjustable
6. The slide is lubrby automatic refueling and reliable lubrication.
7. The slide track is protected by reliable dust cover, and adopts the high-speed silent track of Taiwan brand.
8. The number of spray guns uses 2 guns, and can control their spray and stop spray to complete different functions.
9. Paint oil supply system, oil supply pressure and flow stability, color change is fast, convenient and reliable.
10. The spraying drive device is accurately driven by the Japanese Fuji servo motor to ensure the accuracy of the spray painting. Driving function is sufficient to ensure smooth spraying operation. The control line of driving servo motor adopts the German resistant brand line.
11. The control system adopts reliable computer program control system and good man-machine dialogue interface. Chinese digital programming, only need to input the size of the workpiece and the number of painting, can automatically generate the painting program.
12. Touch mode display screen: fault display, running speed, spraying speed, parameter setting, real-time display of working state;
13. Programming mode: numerical input mode.
14. Safety function configuration: emergency shutdown and safety emergency stop device; machine configuration overload protection function; intake pressure and pressure adjustable display table;
15. Each group of spray guns is equipped with independent adjusting pressure and blowing pressure adjustable display table.
